| Model |
HBST2008LCD-1600 X3400 |
| Power Supply Voltage |
220V/110V |
| Power Supply Frequency |
50HZ / 60HZ |
| Rated Power Supply |
180W |
| LCD Display Dimension |
7.0Inches |
| Effective Cutting Width (X axis) |
1200mm(47''), 1300mm(51''), 1500mm(59"), 1600mm(63") |
| Effective Cutting Length (Y axis) |
2000mm(78''), 3500mm(138"), 5000mm(197"), 6000mm(236") |
| Cutting Speed |
0-3000 mm per minute |
| Plasma Cutting Thickness |
2--22mm depends on plasma capacity |
| Certificate |
CE, ISO9001:2000 |
| Cross Beam Length |
1700mm |
| Longitudinal Rail Length |
4000mm |
| Longitudinal Rail Width |
196mm |
| Host Machine Dimension (L*W*H mm) |
508*344*305 |
| Cross Beam Weight |
9.3kg |
| Host Machine Weight |
26.7kg |
| Longitudinal Rail Weight |
34.5kg |
| Total Net Weight |
70.5kg |
|
|
|
|

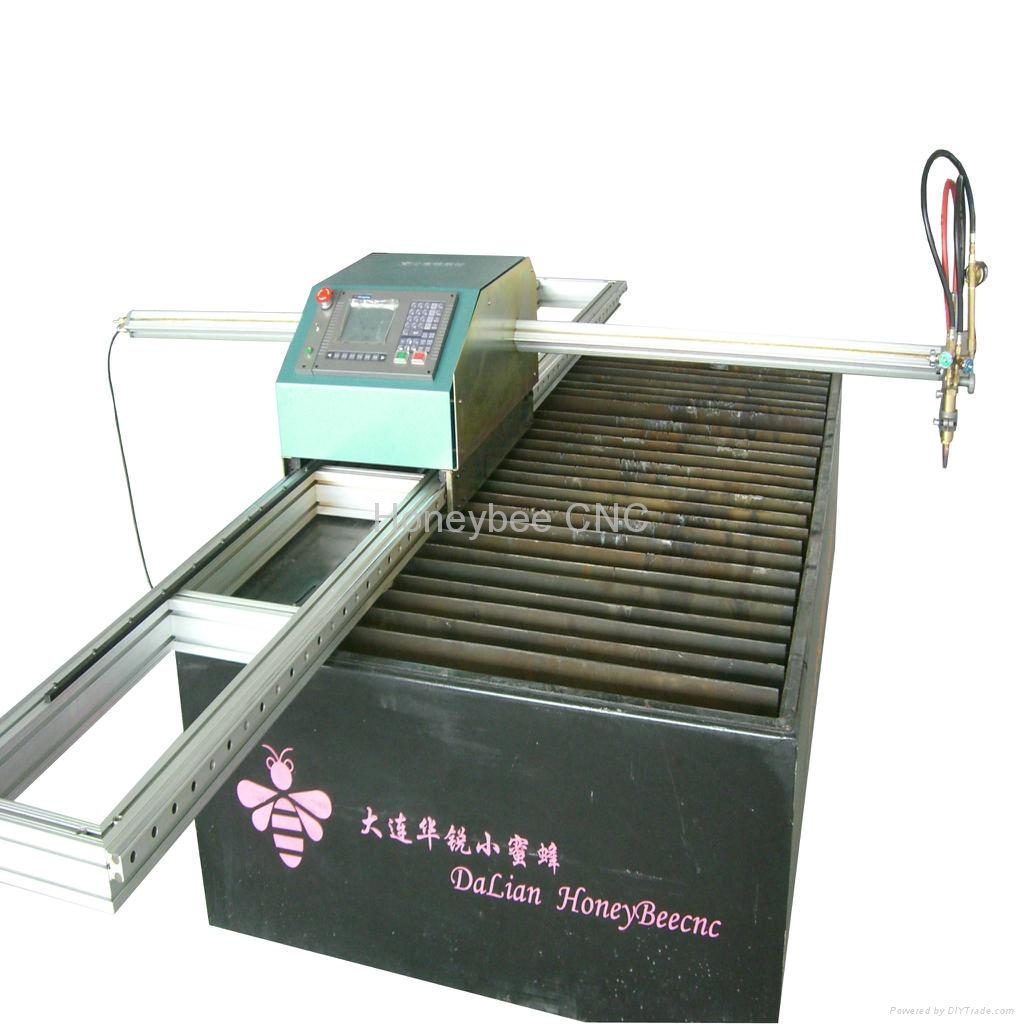

Product Image
|
